Advertising That Moves With You #
Good advertising is important for every business — even one that makes pancakes. At festivals and outdoor events, dozens of food trucks line up next to each other. If yours doesn’t stand out, people walk past it. That’s the problem the owner of this pancake food truck wanted to solve.
After a consultation, we recommended using COB LED pixel strips mounted in aluminum profiles along the exterior of the caravan. Why? Because animated light simply draws more eyes. A moving, colorful display catches attention in a way that a static sign never will. This is especially true in the evening, when the competition is lit by nothing more than a standard work light.
Why COB Instead of Regular Pixel LED #
The caravan came with one real constraint: the mounting space was very thin. To keep the installation clean and road-legal, we could only attach slim aluminum profiles to the vehicle’s exterior.
A standard addressable LED pixel strip requires a profile depth of at least 3 cm. On a moving vehicle, that would stick out too far — it would look rough and could be a hazard.
COB LED strips (chip-on-board) are different. The LEDs are packed densely along a narrow board, which means we could use profiles less than 1 cm thick. Same animated pixel effect, much smaller footprint. For a mobile caravan, this was the right call.
The Installation #
We did the installation on a sunny day at our garden. It turned out to be more involved than we initially expected.
The aluminum profiles had to be precisely cut to length and then riveted directly onto the caravan body. Each section needed to line up cleanly — both for appearance and to make sure the strips were protected. Once the profiles were in place, we inserted the COB LED pixel strips into them.
The whole system is a proper pixel LED installation: each LED position is individually addressable, which means the controller can run smooth animations, color chases, and transitions across the entire surface of the vehicle.
Standalone Control With SPI Matrix #
The client needed something simple. No laptop, no external computer — just a controller that works reliably at every festival, every time.
We used an SPI Matrix standalone LED controller, which stores all the lighting effects on an SD card. The owner switches between different color animations using physical buttons on the unit. That’s it. No phone app, no software, no setup process on site.
This is exactly the kind of plug and play LED system that works well in practical, real-world conditions. The client presses a button, picks an effect, and the caravan starts drawing attention.
The Result #

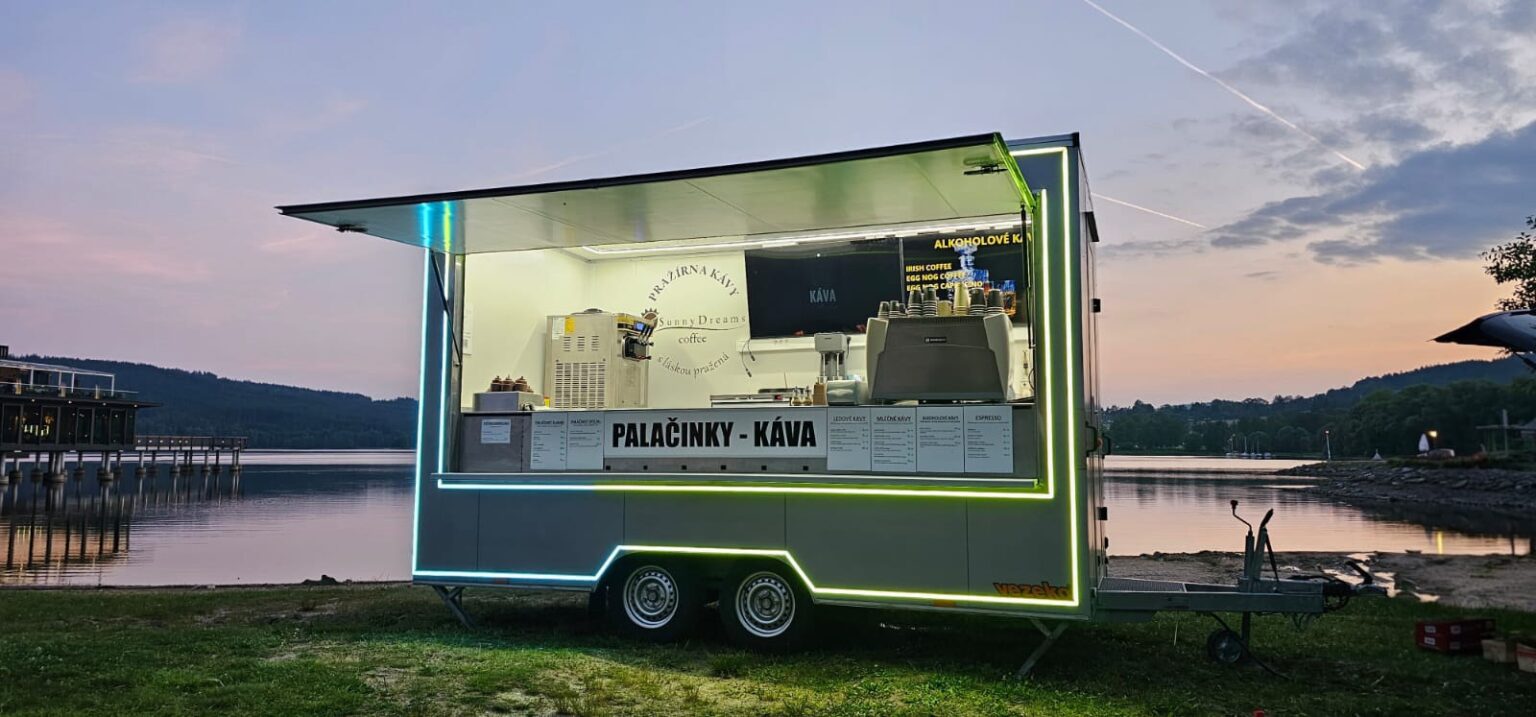

The food truck owner was very happy with the outcome. The caravan now lights up at events with smooth, animated color effects running along its exterior. It stands out from neighboring vendors and invites customers to take a second look.
We hope the new lighting helps sell a lot more pancakes at festivals.
FAQ #
What are COB LED strips and how are they different from regular pixel LED strips?
COB (chip-on-board) LED strips pack the LED chips very tightly along a narrow board, producing a smooth, continuous line of light with no visible dots. Regular addressable LED pixel strips like WS2812B have distinct LED nodes spaced apart. COB strips can be driven as an addressable LED strip using an SPI pixel controller, but they fit into much thinner mounting profiles — under 1 cm versus 3 cm or more for standard pixel strips.
What is a standalone LED controller with SD card?
A standalone LED controller like the SPI Matrix stores animated lighting effects on an SD card and plays them back without any connected computer. The user selects effects using buttons on the device. This makes it ideal for food trucks, mobile setups, and installations where bringing a laptop isn’t practical. The SD card holds as many scenes as you want, and you can update them by simply editing the card.
How do I install LED strips on a vehicle or caravan?
For a vehicle installation, aluminum LED profiles are cut to size and mechanically fastened — in this case, riveted — to the body. COB LED strips or standard addressable LED pixel strips are then inserted into the profiles. It’s important to choose profiles thin enough not to protrude dangerously, and to seal any power or data connections against vibration and weather. For mobile use, a standalone LED controller with an SD card keeps the system simple and self-contained.
How many color effects can you store on an SD card LED controller?
The number of effects depends on the controller model and SD card size, but most SD card LED controllers can hold dozens to hundreds of pre-programmed scenes. Effects are created in LED pixel mapping software and exported directly to the card. The SPI Matrix controller supports this workflow and lets you switch between stored effects using physical buttons or external triggers.
Can pixel LED strips be used for outdoor advertising on a food truck?
Yes — this is a great use case for outdoor LED pixel installation. The key requirements are using profiles or enclosures rated for outdoor conditions, ensuring all connectors and power supplies are weatherproofed, and choosing a standalone LED controller that doesn’t require an internet connection or laptop to operate. LED OOH advertising on food trucks and mobile caravans is increasingly popular at festivals precisely because animated light draws attention far more effectively than static signage.
What is the SPI Matrix controller and what LED strips does it support?
The SPI Matrix is a professional SPI LED controller that drives addressable LED strips using SPI protocol. It supports common IC types including WS2811, WS2812B, WS2815, SK6812, and APA102 strips. In standalone mode it reads effects from an SD card; it also supports Art-Net and DMX input for software-driven control. It’s a flexible choice for both permanent installations and mobile setups like this food truck.
