Project Quick Facts
The Dance Floor Was Done. The Bar Was Next. #

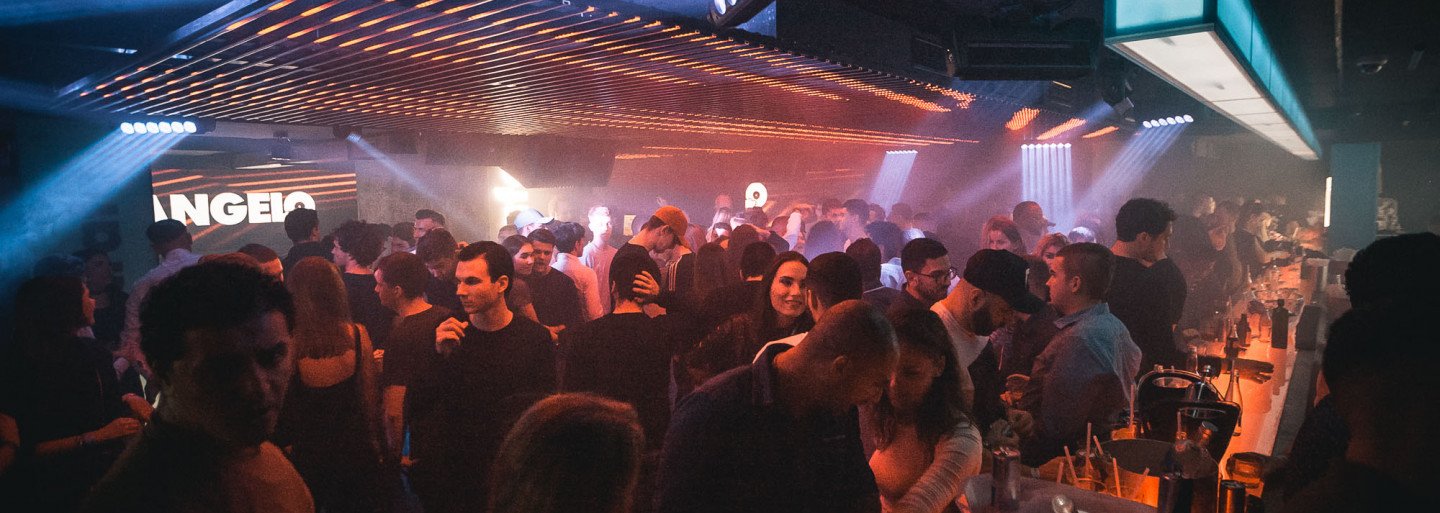

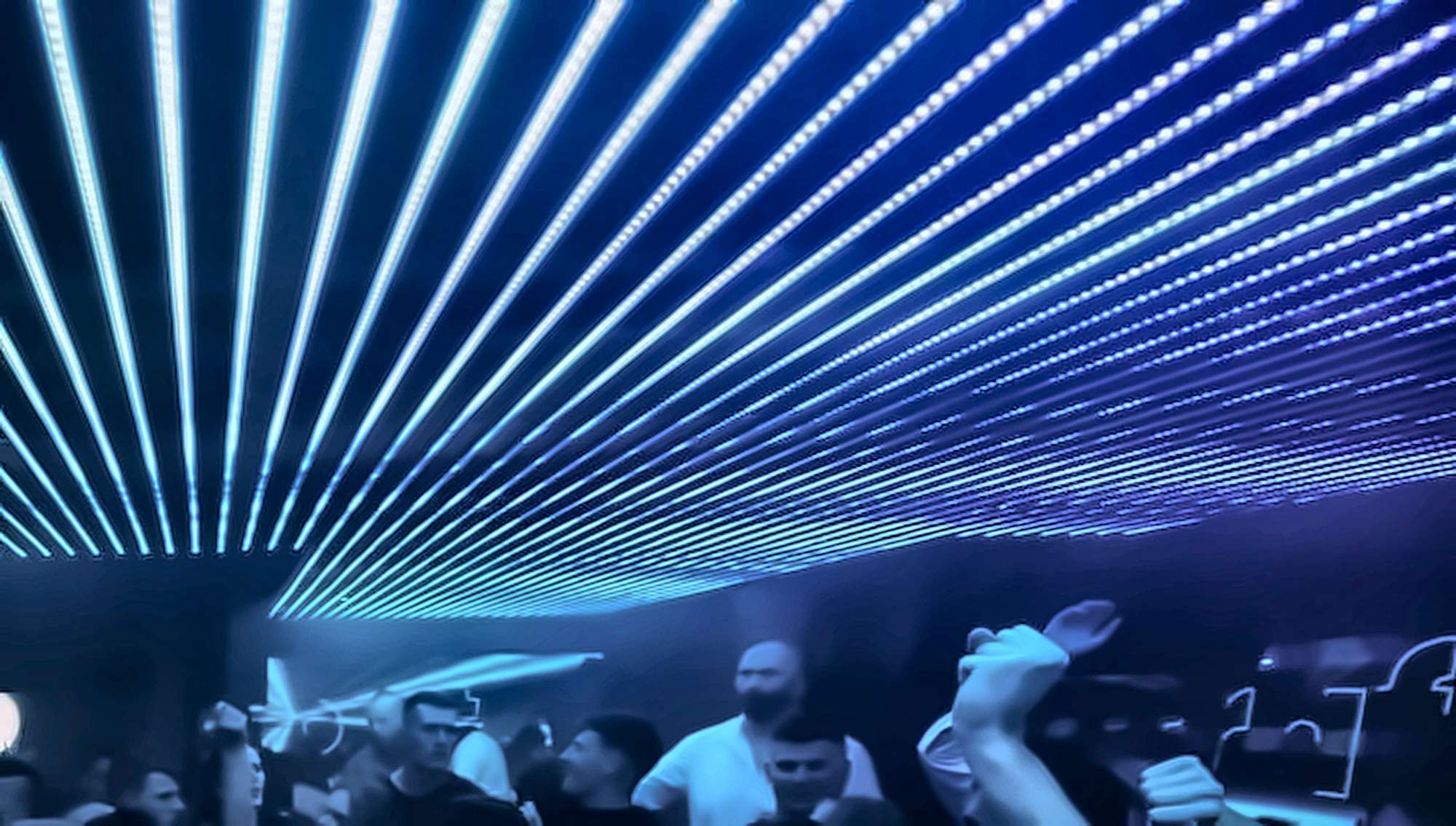

Trafo already had one of the most striking pixel LED ceilings in Bratislava. But the owner knew something important: the dance floor is where the energy is, but the bar is where the money is made.
Research backs this up. Studies on hospitality design consistently show that a well-lit bar can increase revenue by 10–25% just through better customer flow and dwell time. Average spend per customer goes up 5–15% when the space feels premium. In some documented redesigns, a full bar renovation has delivered over 50% annual revenue growth. Around 65% of people say they choose a bar based on atmosphere and vibe — not just the drinks menu.
Put simply: bar design is marketing, branding, and customer experience all in one. So when the Trafo owner decided to upgrade the bar, the goal was clear — make it impossible to ignore.
The Idea: Let the Bottles Glow #

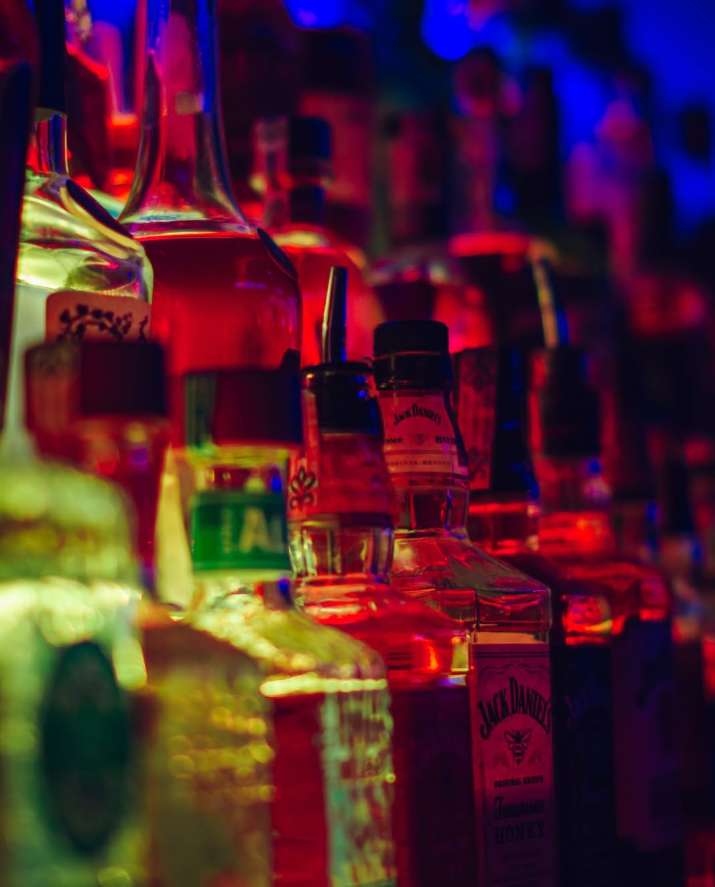

The solution was elegant. The bar shelving was rebuilt using translucent plastic panels as the backing surface. Behind those panels — exactly where the bottles are stored — we installed addressable digital LED strips. The result: every bottle is backlit with a full-color pixel glow that can shift, pulse, breathe, or react in real time.
This is not decorative lighting for its own sake. It draws the eye directly to what matters most at a bar: the product. A backlit shelf full of spirits and mixers becomes a display, not just a storage unit. Customers look at it. They are drawn to it. They order from it.
The SPI addressable LED strips run through the shelving in parallel, each segment mapped individually in LED Strip Studio software. The LEC3 controller handles the data distribution, connected over Ethernet to the rest of the venue network.
One System, Whole Venue #
Here is where the installation becomes something more than a pretty bar. The pixel LED tubes in the new bar zone are connected to the same Resolume Arena session that drives the main dance floor ceiling and the LED walls. The VJ or lighting operator can now synchronize the bar lighting, the ceiling animation, and the background LED panels into one coherent visual show — from a single interface.
This matters for the atmosphere of the night. When the music builds and the ceiling responds, the bar responds too. When a theme changes between sets, the entire room shifts together. Nothing feels isolated or accidental.
It also keeps operations simple for the venue staff. One system to learn, one place to make changes, one show file to maintain.
The Result #
The upgraded bar at Trafo is now a central visual feature of the club, not just a functional counter. Guests gravitate toward it. It photographs beautifully. And it reinforces the identity of the space — a venue that takes its atmosphere seriously.
Combined with the original LED ceiling installation, Trafo is now a fully integrated pixel LED environment where every surface is part of the show. It is one of the most complete bar LED installations we have built — and one of our favorite long-term client relationships.
Frequently Asked Questions #
How do you install pixel LED strips behind a bar shelf?
The shelving is built or modified to include a translucent backing panel — typically frosted acrylic or similar plastic. Addressable LED strips are mounted behind this panel in aluminum profiles. The diffusion from the panel smooths the output so individual pixels are not visible at close range, and the light appears as a clean, even backlight behind the bottles. The LEC3 controller drives the strips over SPI, connected back to the main venue network.
Can the bar lighting be synced with the rest of the club?
Yes — and that is the main advantage of using a unified control system like Resolume Arena with LED Strip Studio. All zones of the venue (ceiling, LED walls, bar) are mapped into one project. The operator can run them together as one show, or trigger zones independently. Changes to the overall look of the night affect the whole room at once.
Does pixel LED lighting behind a bar actually increase revenue?
The evidence from hospitality design research is strong. Better bar lighting improves customer flow, increases dwell time, and lifts average spend. Estimates vary, but a well-executed redesign can produce 10–25% more customers and 5–15% higher average spend. The Trafo owner invested in the bar upgrade for exactly this reason — the ceiling was already done, but the revenue source needed attention too.
What LED strip type is best for a bar backlight installation?
For a bar environment, you want an addressable RGB LED strip rated for at least IP30 (or IP65 if there is any risk of liquid contact). A 12V or 24V strip is preferred over 5V for longer runs without voltage drop. WS2811 or WS2812B IC types are common and well-supported. The strips are placed in aluminium profiles with a diffuser to prevent hotspots when viewed close-up.
How to plan LED lighting for a nightclub or bar?
Start by identifying the zones: dance floor, bar, background walls, entry. Each zone may need a different approach — ceiling installations suit pixel tubes in profiles, bar shelving suits backlit panels, walls suit pixel curtains or LED walls. Then design the control topology: all zones should share one network and one software platform so they can be coordinated. Plan cable routing and power injection points before any physical work begins.
What LED software works with Resolume Arena for club installations?
LED Strip Studio software is the mapping layer between Resolume Arena and your physical LED installation. It captures Resolume’s video output in real time and translates it to the pixel addresses of your LED strips via LEC3 or SPI Matrix controllers. This means any effect, video, or animation you build in Resolume automatically plays across your LED installation — ceiling, bar, walls — without additional configuration.
