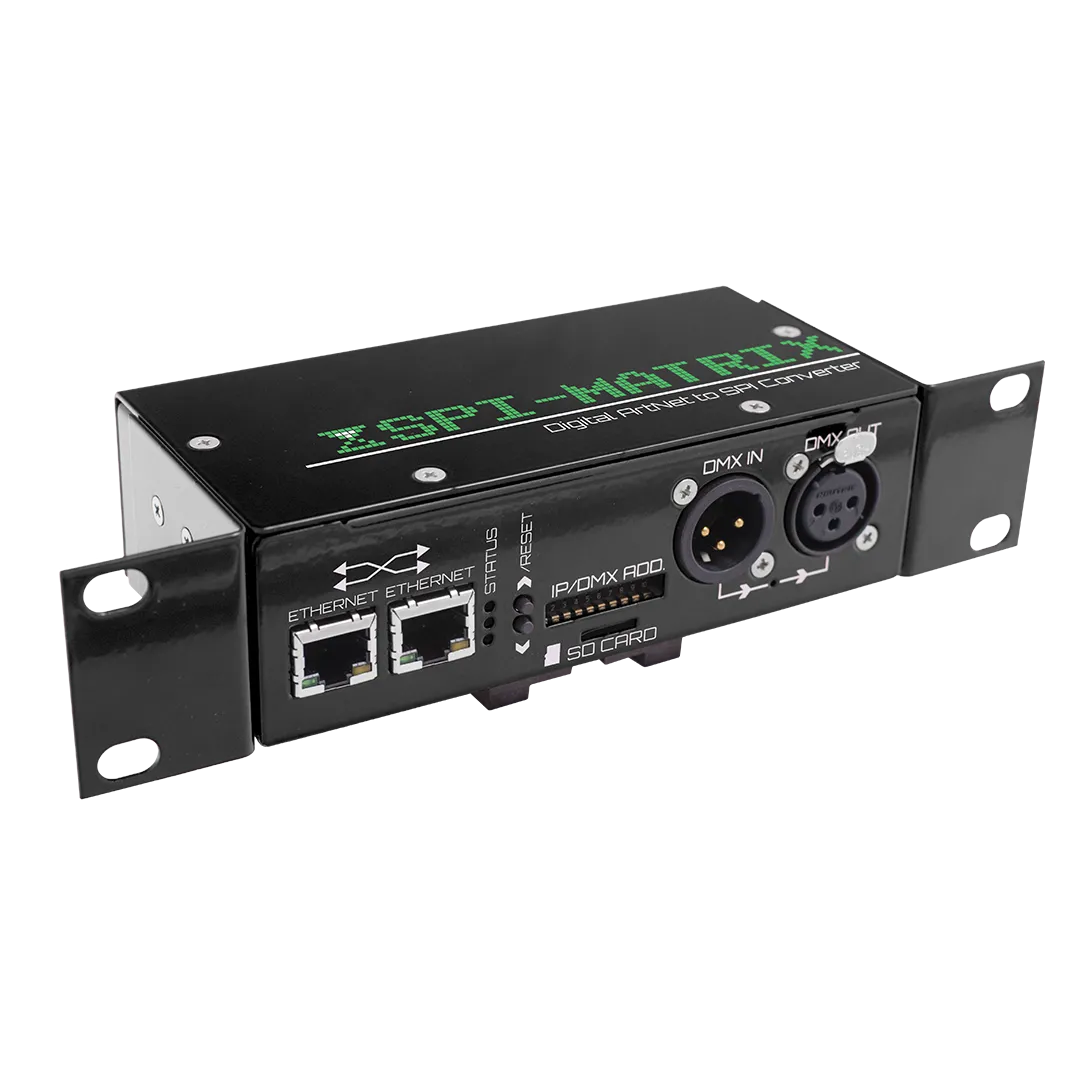

SPI Matrix Art-Net SPI Decoder
SPI Matrix Art-Net SPI Decoder - Image 2
SPI Matrix Art-Net SPI Decoder - Image 3
SPI Matrix Art-Net SPI Decoder - Image 4
SPI Matrix Art-Net SPI Decoder - Image 5
SPI Matrix Art-Net SPI Decoder - Image 6

SPI Matrix Art-Net SPI Decoder

Price range: 300,00 € through 600,00 €

An advanced pixel LED controller that supports Art-Net/sACN (24 full universes in a 6 × 512 group) and DMX. It also operates in standalone mode, allowing content for pixel LEDs to be played from an SD card. Advanced web-based configuration with a quick status panel accessible via a web browser.

Control up to 4096 digital RGB LEDs or 3072 RGBW LEDs, or 24 full Art-Net universes (in the PRO version with 4096 pixels).

✅ Includes a 1-year LED Strip Studio
software license ✅ Supports most industrial IC
types ✅ Proven performance in over 800 projects
✅ Free expert support upon request included in the package

SKU: SPIMatrix Category:

Description

The SPI Matrix can be controlled via Art-Net/sACN or DMX, or it can operate in standalone mode. The maximum number of programmable LEDs is 4,096 RGB or 3,072 RGBW—a total of 24 full Art-Net universes.

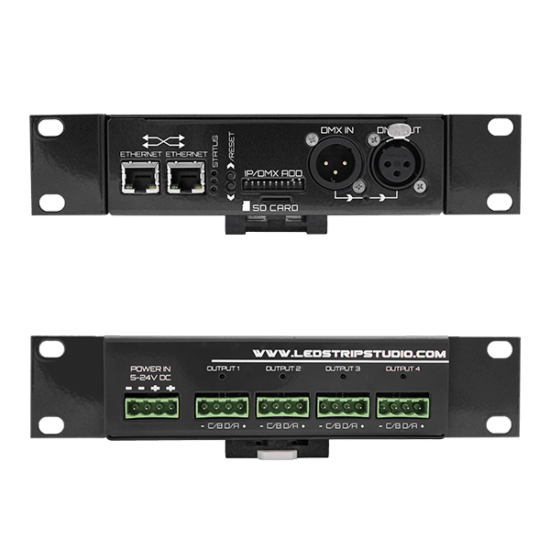

There are 4 independent SPI LED outputs available. The maximum number of RGB LEDs per output is 1024 (6 Art-Net universes per SPI output). For RGBW LEDs, it is 768.

The required input voltage is 5–24 V / 0.3 A (PCB only, without LED strips / pixels) and the maximum current is 10 A. The power connector and SPI output are standard 4-pin terminal blocks with a 5 mm pin pitch, e.g., SH04-5-GYLED.

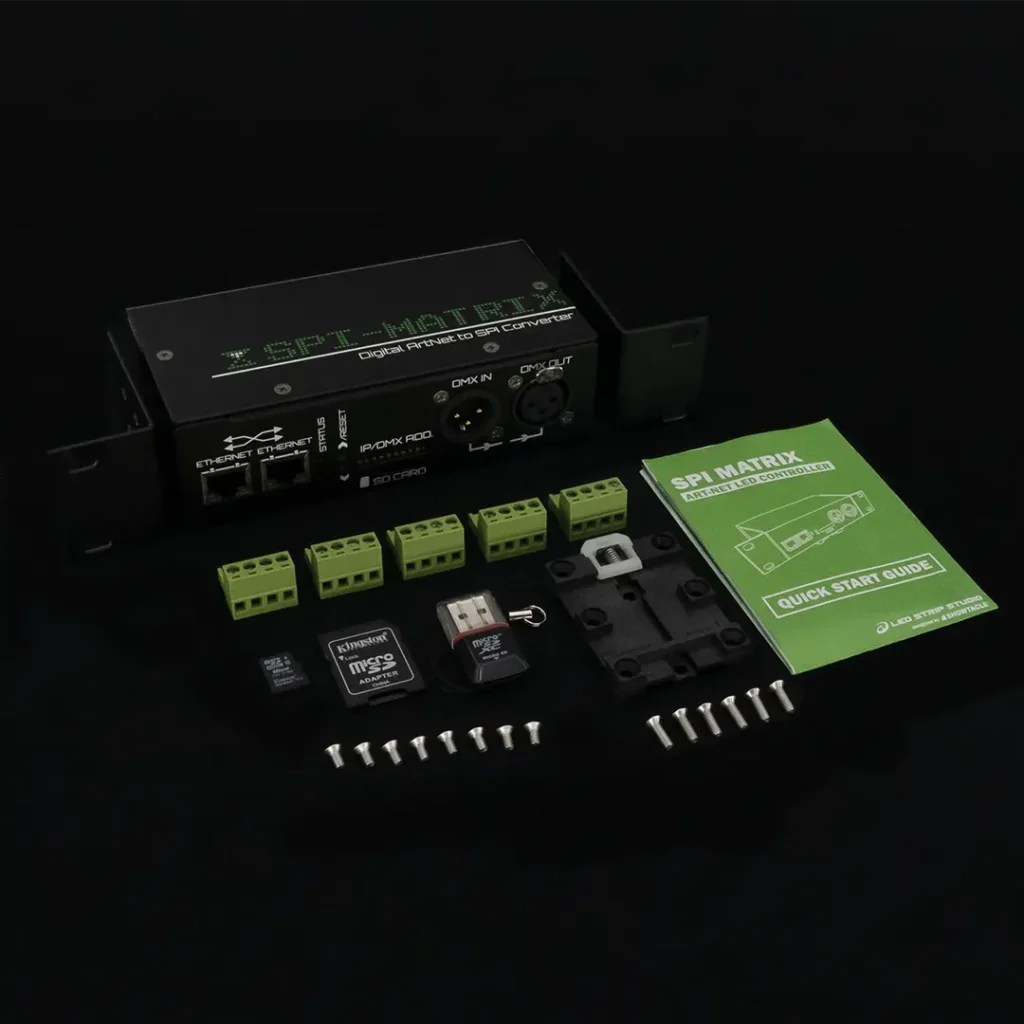

The SPI Matrix supports most common connectors, such as RJ-45, XLR in/out, and SPI connectors for your LEDs. You’ll also find an SD card slot, DIP switches, and buttons for standalone control. The optimal SD card is a Micro SD card (FAT32, up to 32 GB).

The SPI Matrix also includes a 1-year license for the LED Strip Studio software, which you can also use to control Art-Net-compatible third-party hardware and software. If you want to upgrade the SPI Matrix to an LED Ethernet Controller, please contact our support team.

Additional information

Weight 0,489 kg
Dimensions 14,2 × 6,9 × 4,4 cm
Maximal Pixel Count

4096
SPI LED outputs

4
Pixel Count per Output

1024
Required Power

5–24 V / 0,3 A (just PCB without LED strips/pixels)
Maximal Current

10 A
Power Connector

standard 4 pin terminal with 5mm contact spacing e.g. SH04-5-GY
SPI OUT connector

standard 4 pin terminal with 5mm contact spacing e.g. SH04-5-GY
DMX in port connector type

XLR 3-pin connector (optional 5 pin)
DMX out port connector type

XLR 3-pin connector (optional 5 pin)
Ethernet

2x RJ-45 connector, internal switch, 100 Mbit/sec
SD card

Micro SD Card (FAT32, up to 32GB)
Manual

https://www.ledstripstudio.com/download/LEC3HardwareManual.pdf
