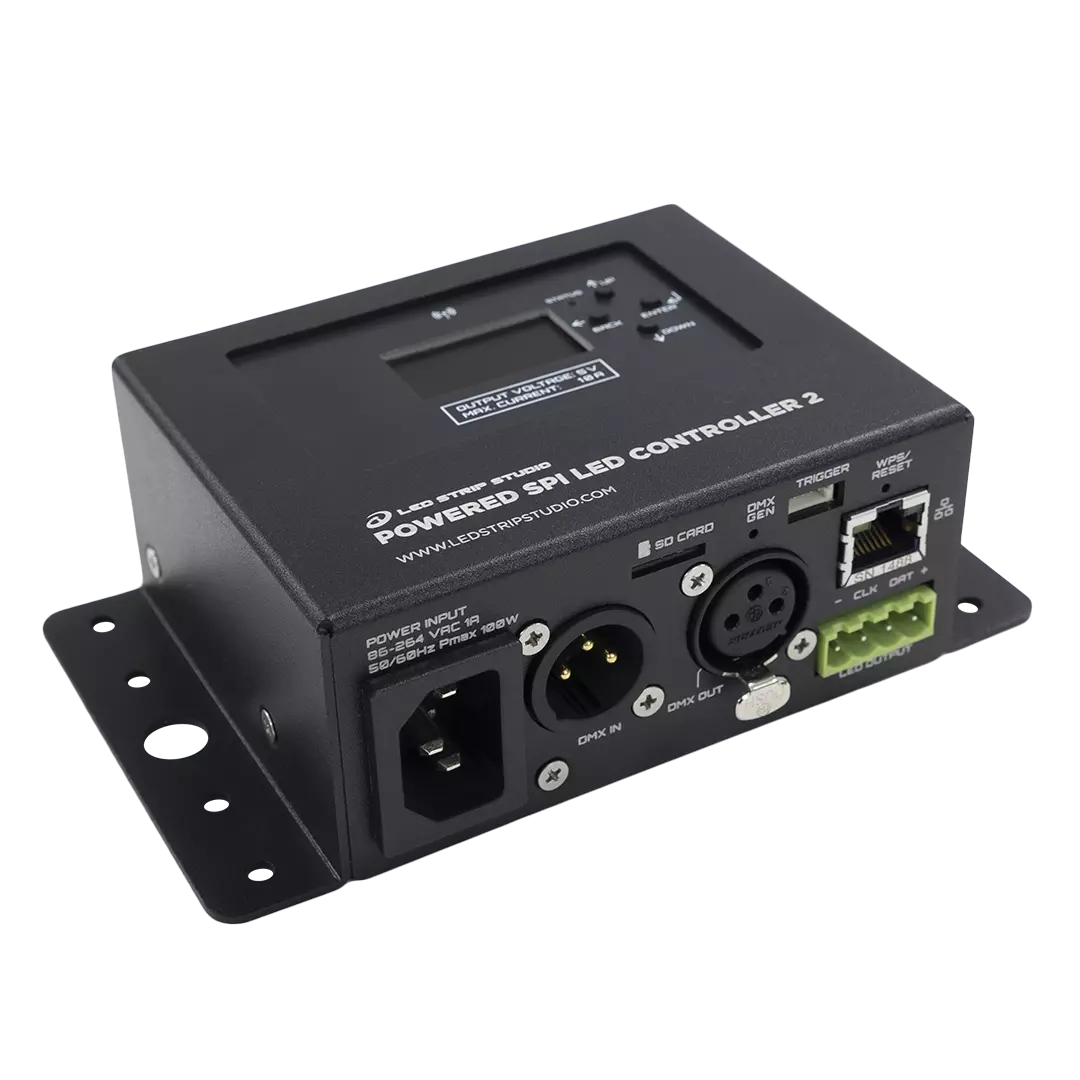

Powered SPI LED Controller 2
Price range: 350,00 € through 700,00 €
The POWERED SPI LED Controller 2 is an all-in-one pixel LED controller with a built-in power supply, designed for professional lighting setups.
Key Features:
-Integrated power supply (86–264 VAC input)
-SPI LED output (WS, TM, APA and more)
-DMX in/out — 512 channel support
-Art-Net™ over Ethernet or Wi-Fi
-Stand-alone playback via microSD card
-External trigger inputs for automation
-OLED display with intuitive controls
Description
The POWERED SPI LED Controller 2 is a compact all-in-one pixel LED control solution with a built-in power supply, designed for professional lighting installations and effects.
It supports Art-Net™, DMX512, stand-alone playback, HTTP commands, app and web browser control, external triggers, and LED Strip Studio protocol, giving you maximum flexibility for any lighting setup.
With both wired Ethernet and 2.4 GHz Wi-Fi connectivity, plus microSD stand-alone operation, it enables reliable performance for events, clubs, theatres, scenography, and architectural lighting.
Key features include: -Integrated power supply (86–264 VAC input)
- SPI LED output (WS, TM, APA and more)
- DMX in/out (512 channels support)
- Art-Net™ over Ethernet or Wi-Fi
- Stand-alone playback via microSD card
- External trigger inputs for automation
- OLED display with intuitive controls
- Firmware updatable
A powerful, flexible controller built for professional pixel LED installations and advanced lighting control systems.
Additional information
| Weight | 0,5 kg |
|---|---|
| Dimensions | 150,6 × 48,1 × 85,2 cm |
| Controls over | Art-Net™ (Wired or Wireless), DMX512, Stand-alone, http commands, App, web browser, external triggers, LED Strip Studio protocol (with license) |
| Operating voltage | 86 ~ 264 VAC/47 ~ 63Hz |
| Self power consumption | 5W |

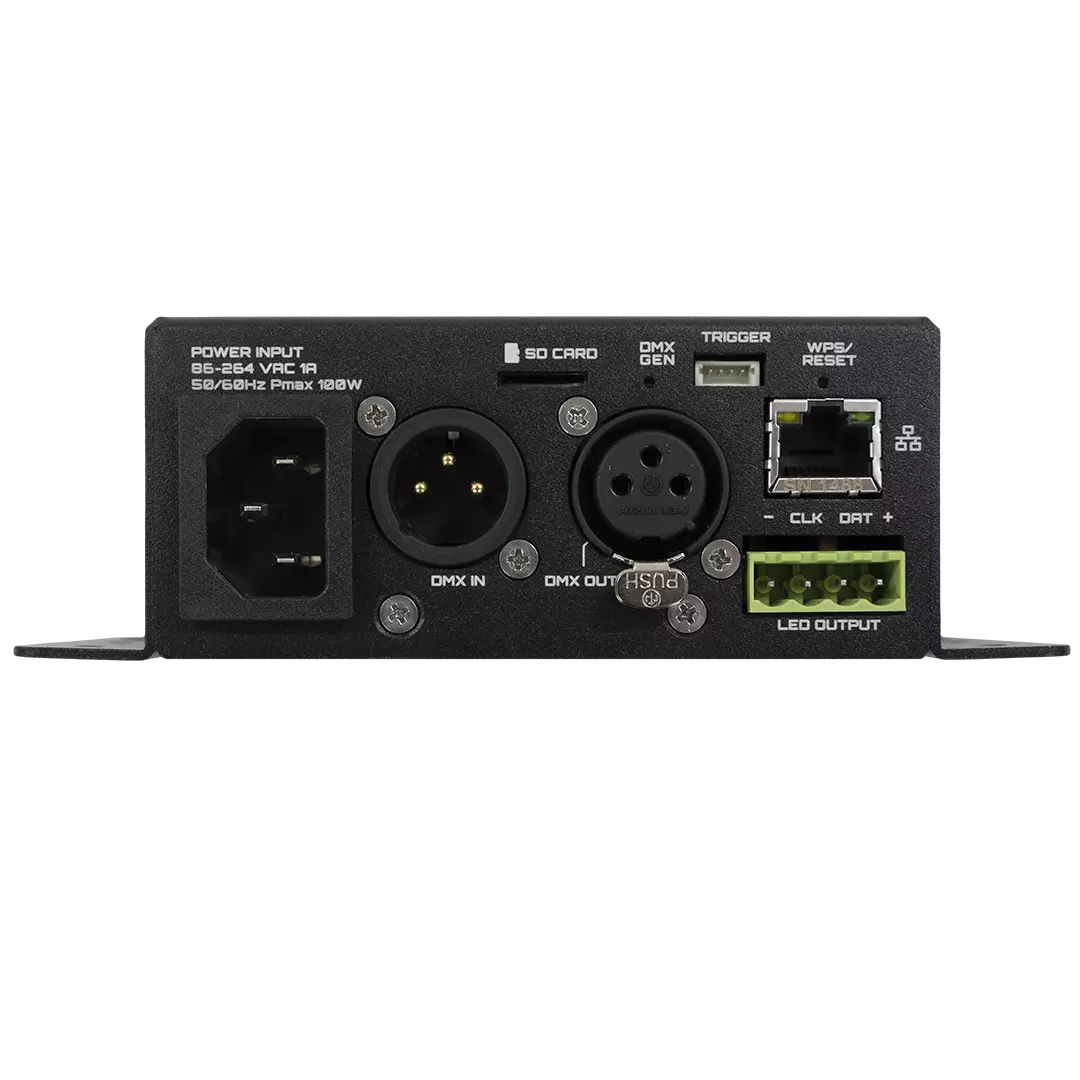

| Power input connector | IEC C14 |
| Power output / max current 3 variants exist | 5VDC/10A, 12VDC/5A, 24VDC/2.5A |
| Wired Ethernet port type RJ-45 connector | 10/100 Mbps, Auto-MDIX |
| Wireless Ethernet type | 2.4Ghz Wi-Fi 802.11 b/g/n, internal antenna |
| SD Card type | Micro SD Card (FAT32, up to 32GB), pushpush |
| DMXin Channels total | 7 in SD-card mode, 3-512 in pixel mode |
| DMXin port connector type | MALE 3pin XLR by default, 5pin XLR on request |
| DMXin port type | DMX512 |
| DMXin port protection | Yes, ESD |
| DMXin isolated | No |
| DMXout port connector type | FEMALE 3pin XLR by default, 5pin XLR on request |
| DMXout port type | DMX512 (pass-through) or DMX512 generated by device |
| Trigger Input Channels total | 2 |
| Trigger Input port connector type | 4-pin pitch 1.5mm JST ZH compatible |
| Trigger Input port electrical type | Analog trigger input 0-3.3V with internal 12k pull-ups |
| Trigger Input port contain power | Yes, output, 3.3V max 50mA |
| Trigger Input port protection Yes | ESD |
| Trigger Input connector pins | GND, Trigger1, Trigger2, +3.3V |
| LED Output port connector type | 4 pole pluggable terminal block pitch 5mm |
| LED Output port electrical type | Single ended TTL 5V synchronous/asynchronous |
| LED Output port contain power Yes | Voltage and max. current depends on device variant |
| LED Output port protection Yes | ESD |
| LED Output connector pins | GND, Clock, Data, +POWER |
| LED Output communication protocol | SPI: TM, WS, APA and more, check: http://www.ledstripstudio.com/wiki-category/icpixel-led-types/ |

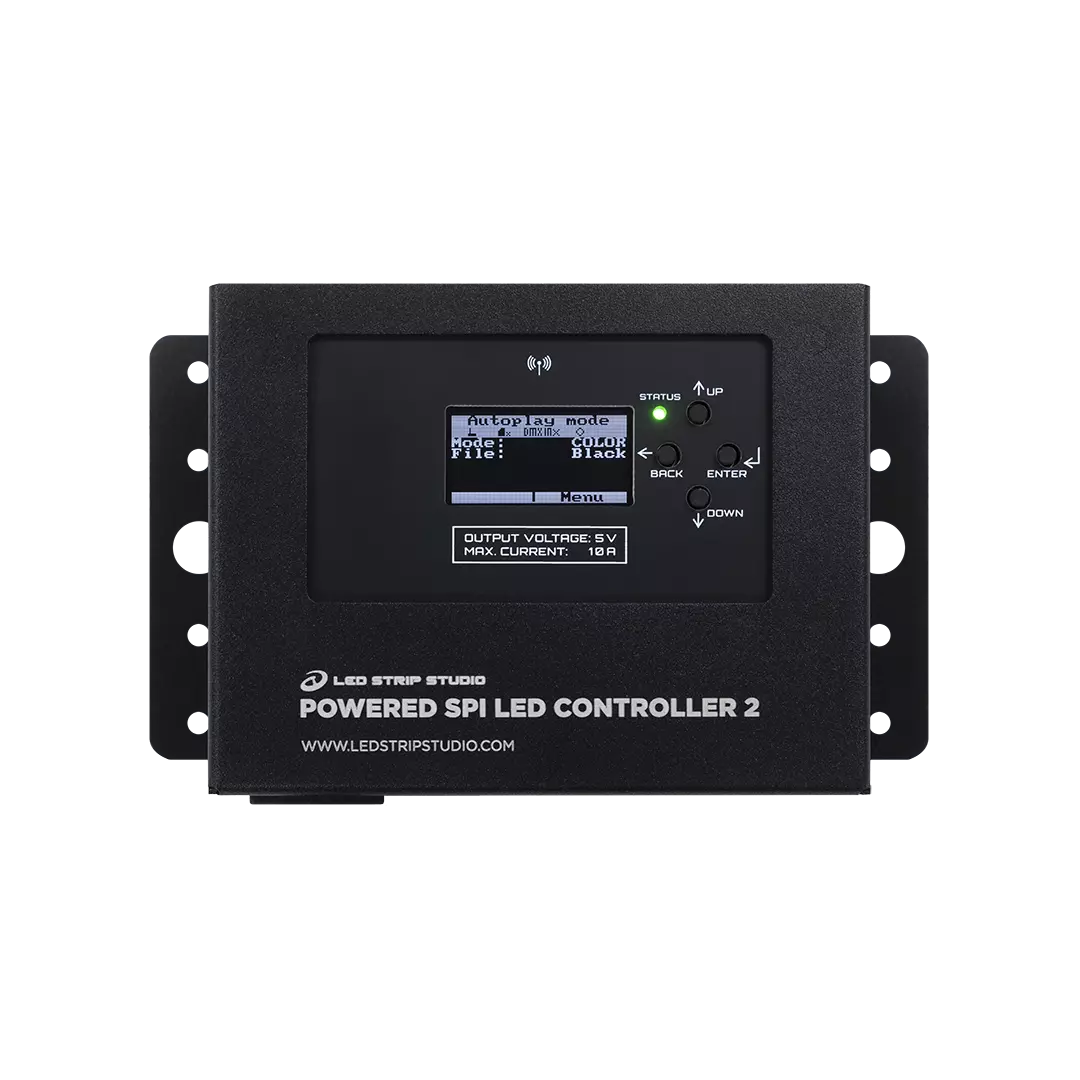

| Device menu | OLED monochrome display 64x128pix, 4x navigation push buttons |
| WPS/Reset | Push button accessible by paper clip |
| Status LEDs | Green: Status, Blue: DMX output generated by device |
| Maximum of RGB/RGBW pixels per Output | Typ. 1024/768* ((*Extra power supply needed if internal PS has lower current rating than needed)) |
| Special features/options | Firmware updatable by user |
| Works with controller/software | Any Art-Net™ controller/software, Any DMX512 controller, LED Strip Studio (with license) |
| Operating air temperature | -10°C to 45°C |
| Storage air temperature | -10°C to 60°C |
| Relative humidity | 5% to 80% non-condensing |
| Waterproof | No |
| Ingress protection | IP30 |
| Enclosure | Aluminium |
| Mouting options | Side tabs with holes for screws, cable ties, clamps, safety wire |
| License | Art-Net only, LED Strip Studio software license |
