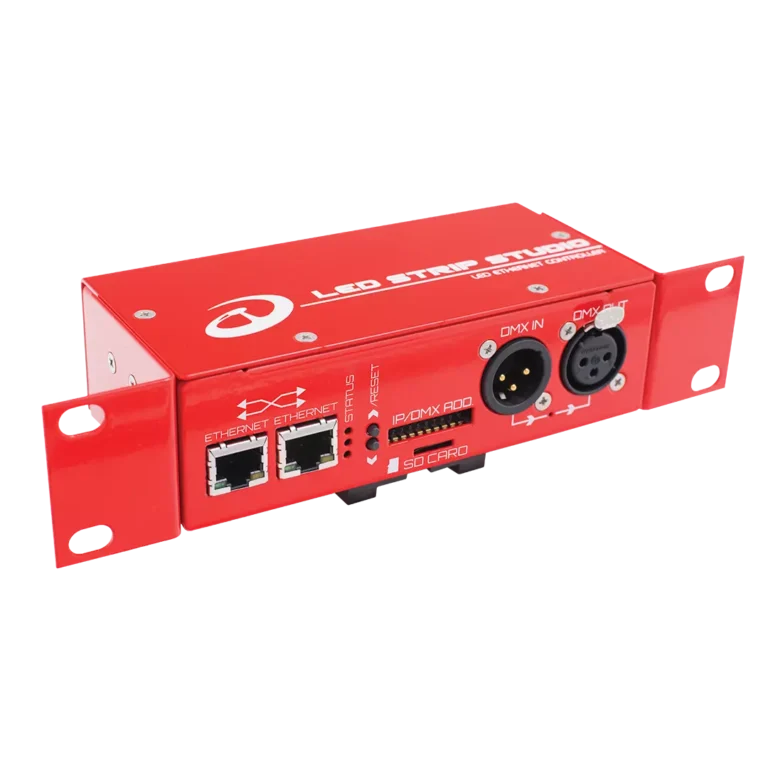

LED Ethernet Controller 3

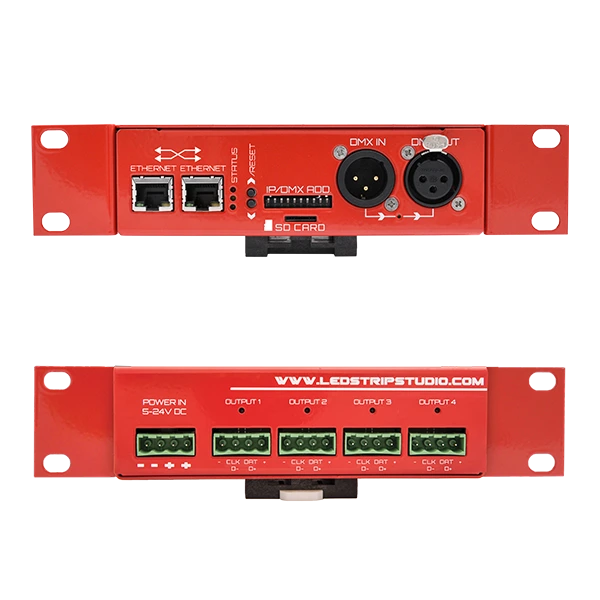

LED Ethernet Controller 3 - Image 2

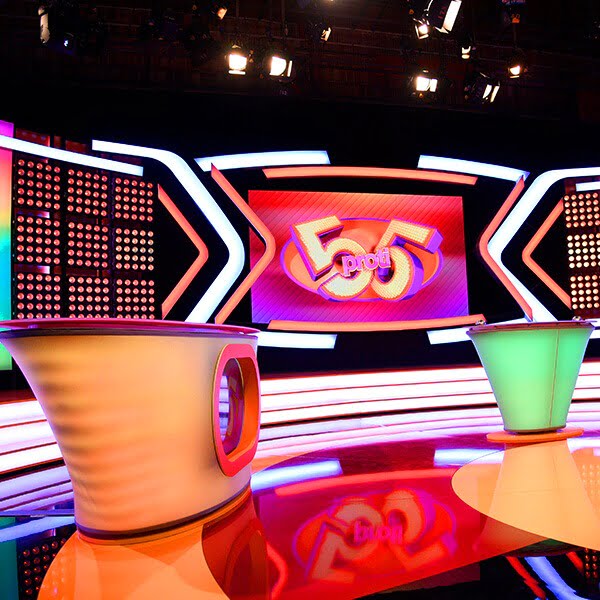

LED Ethernet Controller 3 - Image 3
LED Ethernet Controller 3 - Image 4
LED Ethernet Controller 3 - Image 5
LED Ethernet Controller 3 - Image 6

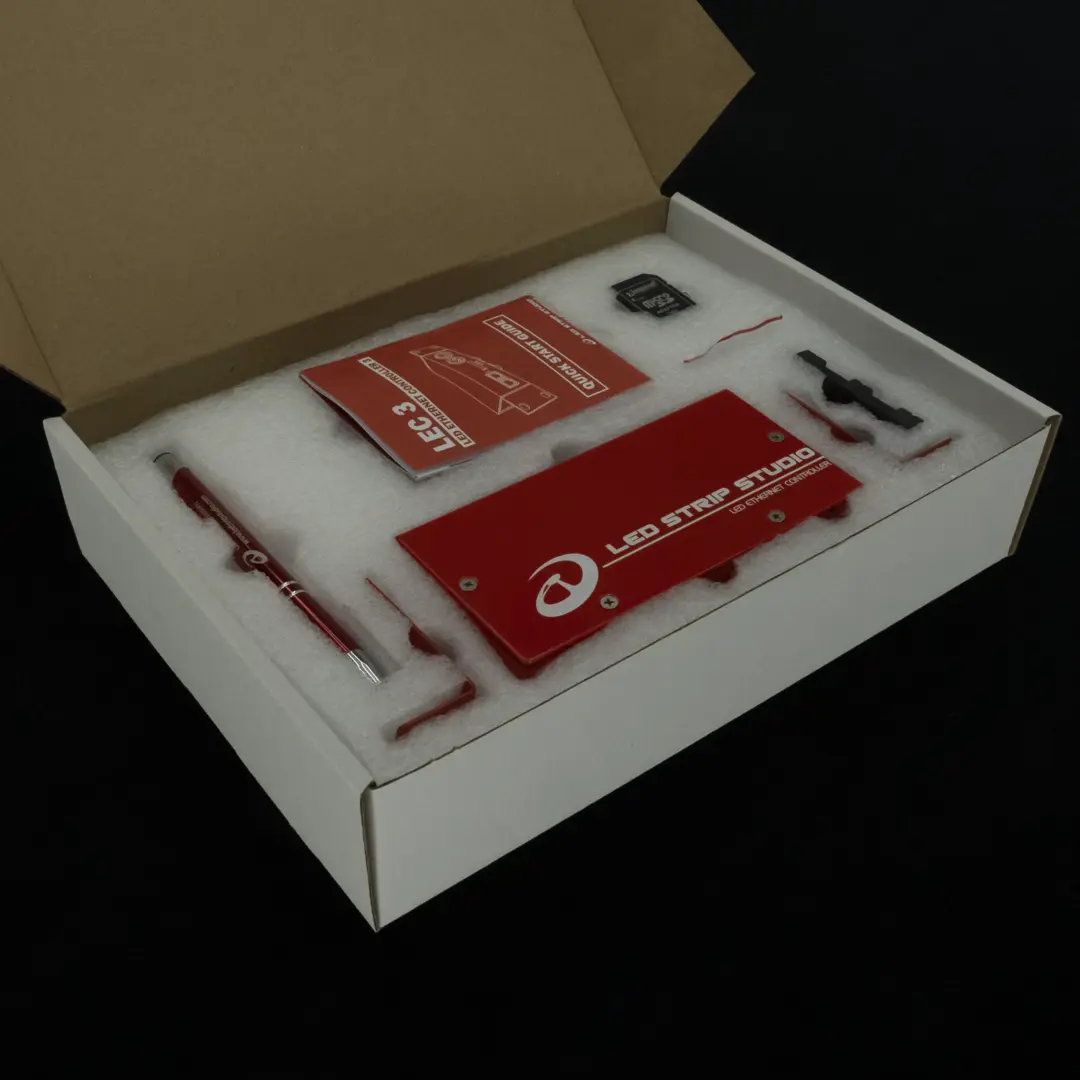

LED Ethernet Controller 3 - Image 7

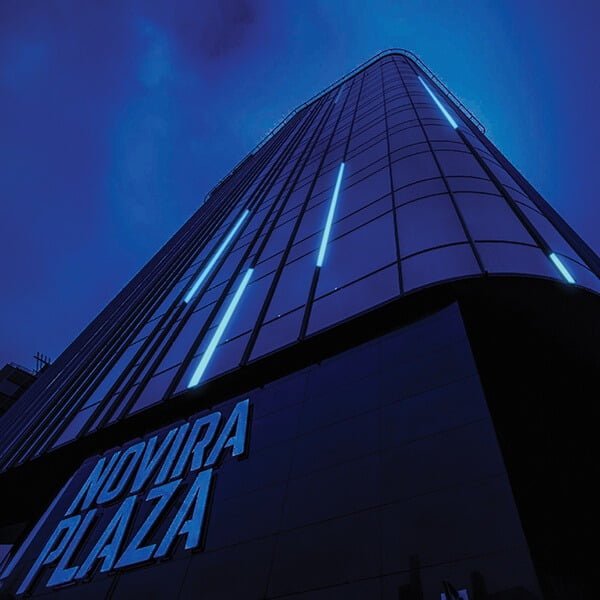

Fasadove osvetlenie budovy

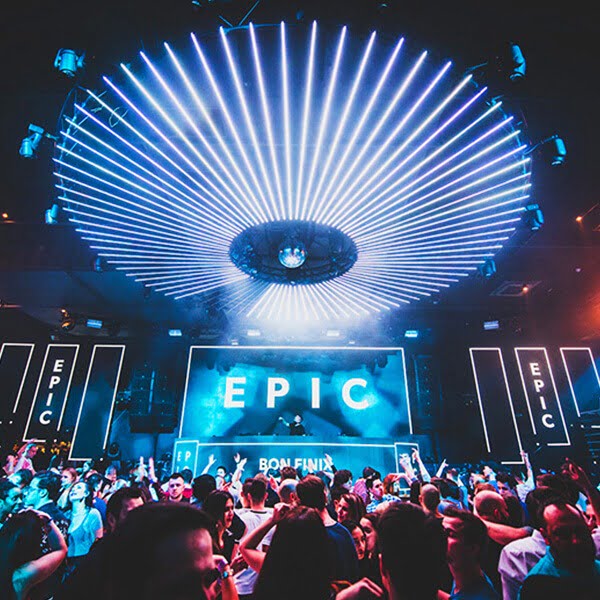

Efektove nasvietenie stropu

LED Ethernet Controller 3

Price range: 650,00 € through 1 250,00 €

An advanced LED controller that supports Art-Net (up to 24 universes) and DMX. It can be controlled via the LED Strip Studio software (a lifetime software license is included), any Art-Net-compatible software or hardware, lighting consoles, and more.

The controller can also operate in standalone mode. Advanced web configuration is available with a quick status panel accessible via a web browser.

Control of up to 4096 digital RGB LEDs or 3072 RGBW LEDs, corresponding to 24 full Art-Net universes. Three RGB pixel versions are available: 4096 / 2048 / 1024, which can be upgraded to a higher pixel count (up to 4096 RGB pixels).

SKU: LEC3 Category:

Description

Advanced Features
There are many standard features you are already familiar with from previous versions of the LEC 3 controller. However, we would like to highlight the most interesting ones:

  • Lifetime software license

  • Automatic interpolation

  • Active support for LSS software and Art-Net-compatible third-party software/hardware

  • Web browser interface – configure and test your LEC3 via a mobile device or computer

  • DMX and Ethernet daisy chaining

  • Automatic playback mode with an animation playlist stored on a Micro-SD card

  • Easy mounting on a DIN rail

  • Various versions based on pixel count with upgrade options (manual or via one-click software)

Additional information

Weight 0,469 kg
Dimensions 14,2 × 6,9 × 4,4 cm
Maximal Pixel Count

4096
SPI LED outputs

4
Pixel Count per Output

1024
Required Power

5–24 V / 0,3 A (just PCB without LED strips/pixels)
Maximal Current

10 A
Power Connector

standard 4 pin terminal with 5mm contact spacing e.g. SH04-5-GY
SPI OUT connector

standard 4 pin terminal with 5mm contact spacing e.g. SH04-5-GY
DMX in port connector type

XLR 3-pin connector (5-pin on request)
DMX out port connector type

XLR 3-pin connector (5-pin on request)
Ethernet

2× RJ-45 connector, integrtated switch 100 Mbit/s
SD card

Micro SD card (FAT32 up to 32 GB)
Manual

https://www.ledstripstudio.com/download/LEC3HardwareManual.pdf
