ProfiLED
Price range: 2 750,00 € through 4 850,00 €
An all-in-one LED system package featuring 10- or 20-pixel LED bars. Designed for quick setup and seamless operation, it includes everything you need to focus on creating stunning lighting.
* 10x or 20x RGB LED Bars
* LED Controller with built-in Power Supply
* LED Strip Studio Software
Description

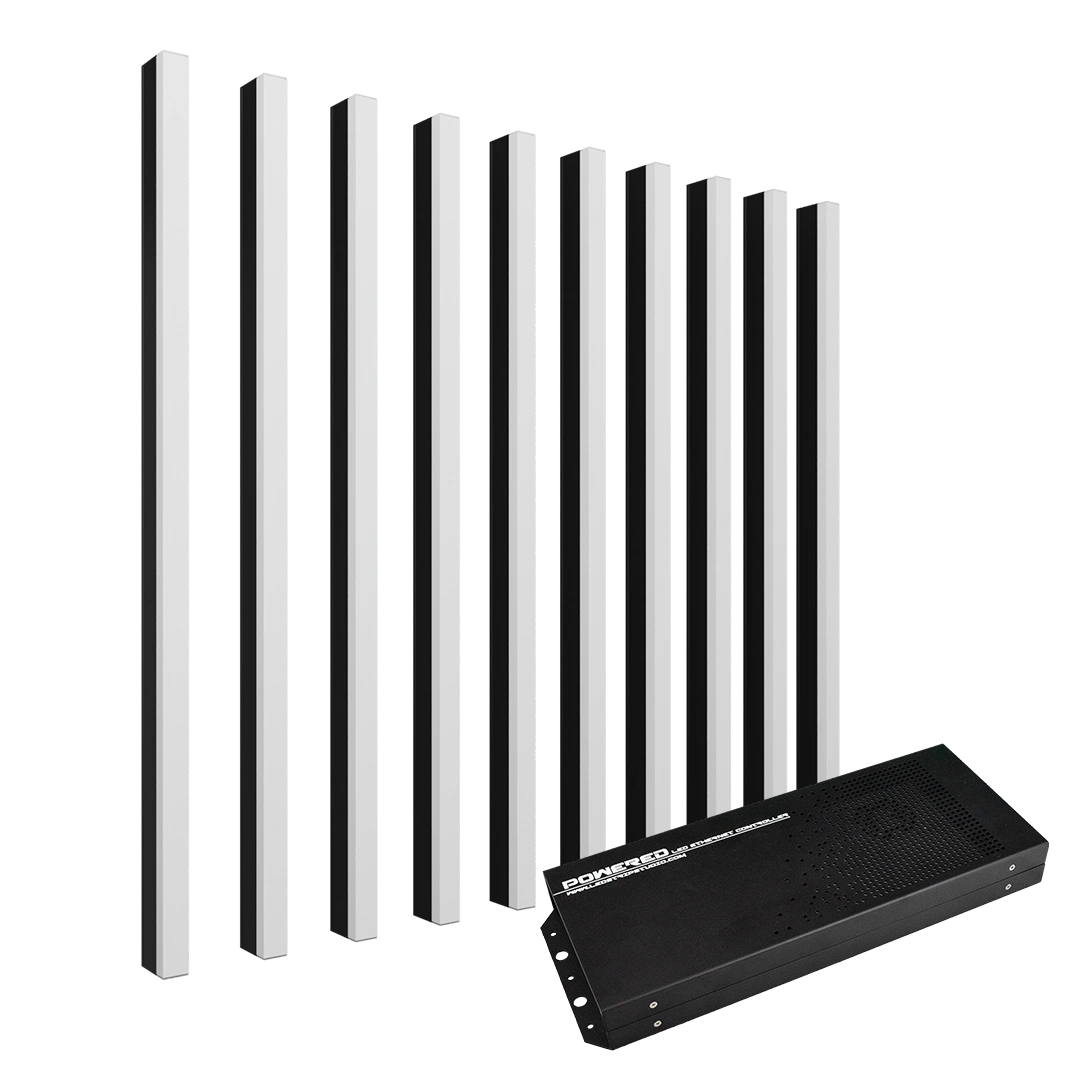

Complete 10 or 20-bar LED system – all-in-one package
Bring your lighting projects to life with this complete 10-bar LED system. Ideal for creative installations, stages, events, or any space that needs vibrant, modular LED lighting. This all-in-one package includes:

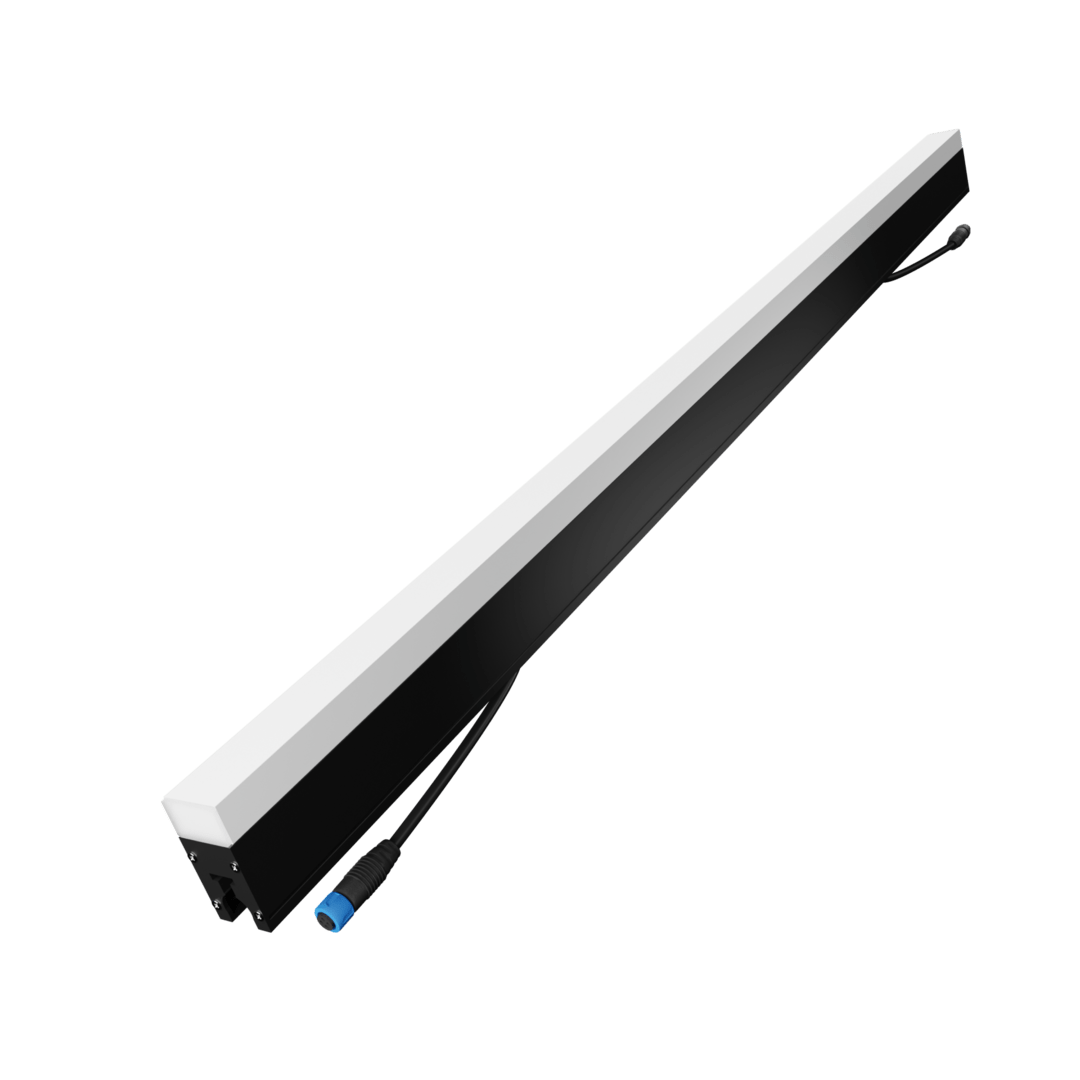

10 high-performance LED bars – bright and consistent light for any application.

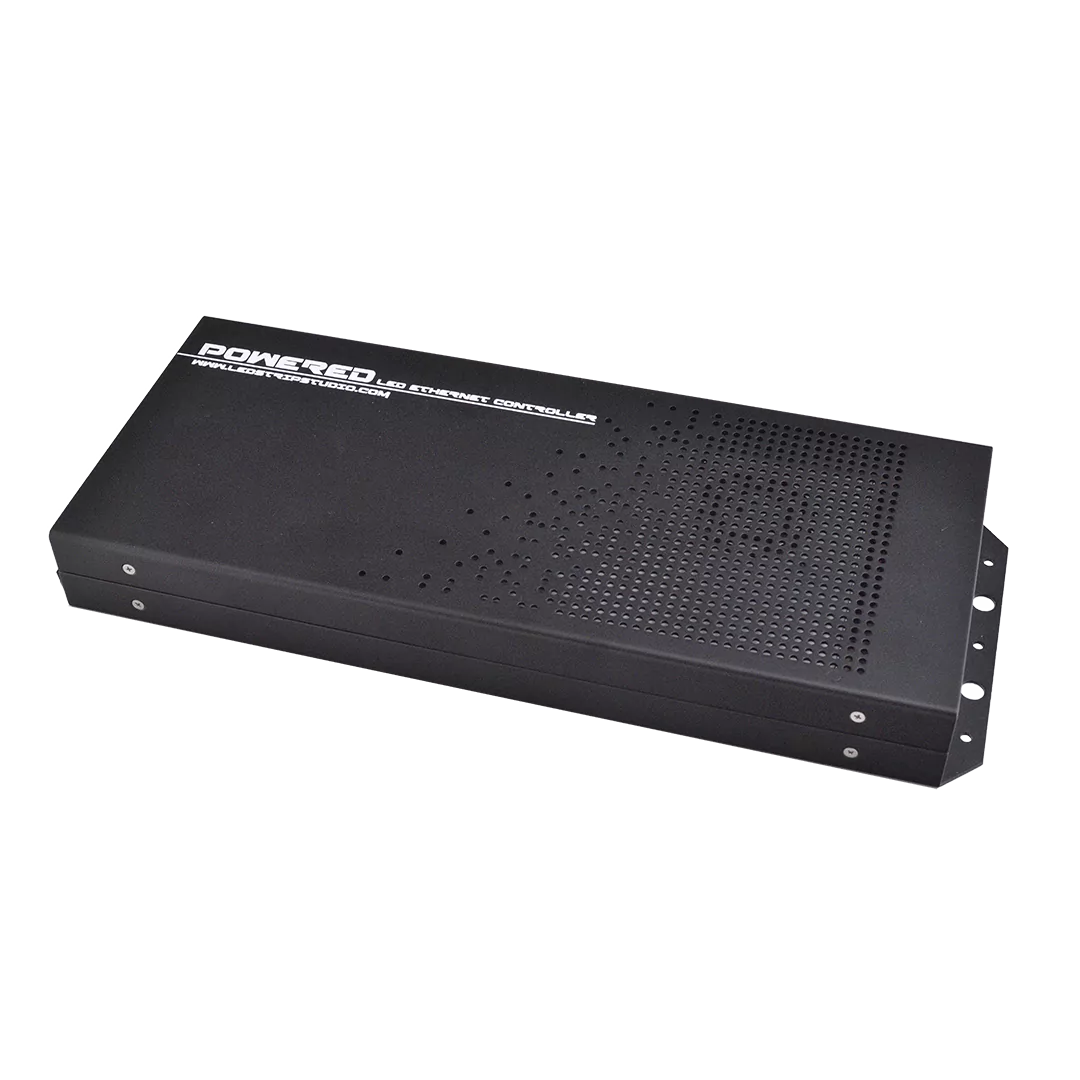

Integrated controller with power supply – seamless control of all bars, ready for immediate use.
LED Strip Studio software – full control via Art-Net, DMX, or standalone mode.
Designed for maximum plug-and-play simplicity – the system lets you mount, connect, and synchronize all 10 bars in seconds. A modular, versatile solution created for professionals and creatives alike.
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 105 × 30 × 30 cm |
| Operating voltage | 24V DC |
| Operating current | 0.5 A |
| In/Out connector | 4-pin M12 connector with push lock |
| Number of LED Bar Fixtures | 10 pcs, 20 pcs |
| Number of pixels per meter | 60 pixels (per LED Bar) |
| Color channels | RGB, 3 channels: Red, Green, Blue |
| Typ. Dominant Wavelengths | R:620nm, G:520nm, B:465nm |
| Typical light output flux | 400lm per meter |
| Grayscale | 8-bit |
| CRI | >80 |
| View angle | 150° |
| Operating air temperature | -20 °C to +65 °C |
| Storage air temperature | -30 °C až +85 °C |
| Relative humidity | 5% to 80% non-condensing |

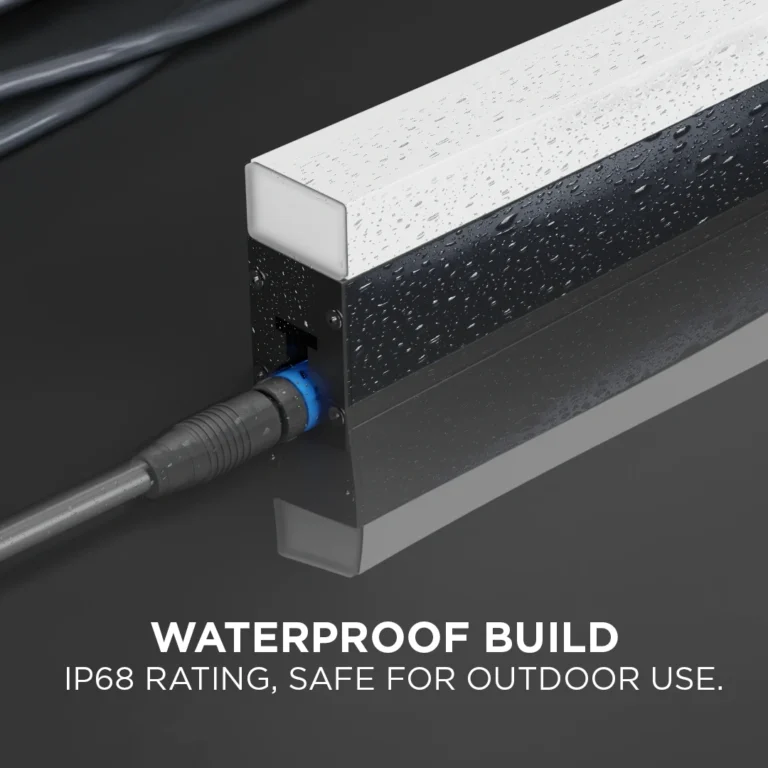

| Waterproof | Yes |
| Ingress protection | IP68 |
| Profile material | Black Anodized aluminium |
| Manual | https://www.ledstripstudio.com/wp-content/uploads/2025/10/profiLED_datasheet.pdf |
